Вимикачі HENSEL

Helvar Group panel kv 1512 12M 1x12 mo

Helvar Group panel kv 3536 36m 3x12 mo

MiWD2 - Gasket set t/assembly of Mi boxes 150/300mm Gasket: - Packing for assembly of Mi-Boxes. - Fits 150mm or 300mm - consists of 1 gasket, 4 wedges, 1 clamp. Hensel Packing set for assembling boxes

MiMP8 - Mounting plate t/Mi 8, 565x565x4Mounting plate W 565 x H 565 mm ?? - Material thickness 4mm ?? - For empty Mi box, size 8 - Incl. screws Hensel Mounting plate t/mi 8, 565x565x4

Mounting plate t/Mi3-4 boxes, 265x415x4mm - For mounting at the bottom of the boxes for mounting components. Mi MP 3 | Electricity no. 88 12 204 054 Mounting plate W 265 x H 415 mm ?? Material thickne ще→ss 4mm ?? For empty Mi box, size 3, 4, 6?? With fixing screws Hensel Mounting plate t/mi3-4 boxes, 265x415x4mm

MiMP2 - Mounting plate t/Mi2-3-4-8, 265x265x4 Mounting plate: - W: 265mm, H: 265mm - Material thickness: 4mm - For empty boxes size: 2,3,4,5,6,8 - with screws for fastening. Hensel Mounting plate t/mi ще→2-3-4-8, 265x265x4

Recessed dimensions WxHxD 275 x 425 x 150 mm?? - Max. installation depth with built-in mounting plate 146 mm,with built-in DIN rail 135 mm?? - Box size 3?? - DIN rails or mounting plates are ordered s ще→eparately?? - With grey lid?? - Lid with lock for tool operation- IP65- Colour: Grey - RAL7035 Recessed dimensions WxHxD 275 x 425x 150 mm ?? - Max. installation depth with built-in mounting plate 146 mm, with built-in DIN rail 135 mm ?? - Box size 3?? - DIN rails or mounting plates are ordered separately ?? - With gray lid ?? - Lid with lock for tool operation Hensel Mounting box 450x300x170mm, grey

Recessed dimensions WxHxD 275 x 275 x 150 mm?? - Max. installation depth with built-in mounting plate 146 mm,with built-in DIN rail 135 mm?? - Box size 2?? - DIN rails or mounting plates are ordered s ще→eparately?? - With transparent lid?- ? Lid with lock for tool operation- IP65- Colour: Grey - RAL7035 Recessed dimensions WxHxD 275 x 275x 150 mm ?? - Max. installation depth with built-in mounting plate 146 mm, with built-in DIN rail 135 mm ?? - Box size 2?? - DIN rails or mounting plates are ordered separately ?? - With transparent lid ?- ? Lid with lock for tool operation Hensel Mounting box 300x300x170mm, transparent

Recessed dimensions WxHxD 275 x 275 x 150 mm?? - Max. installation depth with built-in mounting plate 146 mm,with built-in DIN rail 135 mm?? - Box size 2?? - DIN rails or mounting plates are ordered s ще→eparately?? - With grey lid?- ? Lid with lock for tool operation- IP65- Colour: Grey - RAL7035 Recessed dimensions WxHxD 275 x 275x 150 mm ?? - Max. installation depth with built-in mounting plate 146 mm, with built-in DIN rail 135 mm ?? - Box size 2?? - DIN rails or mounting plates are ordered separately ?? - With gray lid ?- ? Lid with lock for tool operation Hensel Mounting box 300x300x170mm, grey

Mi1220 24M (2x12) 300x300x214 2 rk. lid FIXCONNECT term. f/PE & N. 24 modules: 2 x 12 x 18 mm ?? - 2 rows ?? - With hinged lid ?? - FIXCONNECT® plug clamp technology for PE and N ?- ?Per PE/N 3 x 25 m ще→m², 12 x 4 mm², Cu ?? - N can be separated into different potentials ?? - For mounting DIN rail equipment according to DIN 43880 ?? - With cover strip for the cutout ?? - Manually operated lid locking devices Hensel Mi1220 24m (2x12) 300x300x214 2 rk. lid

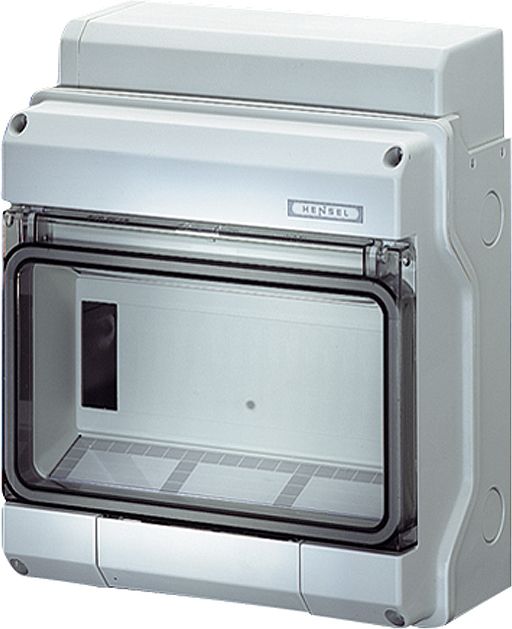

Technical data:rated insulation voltage: Ui = 400 V a.c.heat/power loss capacity: Pde = 16W at 30 K according to EN 60670-24protection class: IImaterial: PS (polystyrene)width: 200 mmheight: 238 mmdep ще→th: 111 mmweight: 0.96 kgOperating and ambient conditions:Application areas: IP 54/65 Design: Usable for indoor and outdoor installation, protected from weather influencesIP 40/41 design: Useful for installation in dry indoor areasHowever, pay attention to the climate of the installedequipment, e.g. high or low ambient temperatures orformation of condensed water - see technical information.Ambient temperatures: Average value over 24 hours + 35 °CMaximum value + 40 °CMinimum value - 5 °C Relative hum…

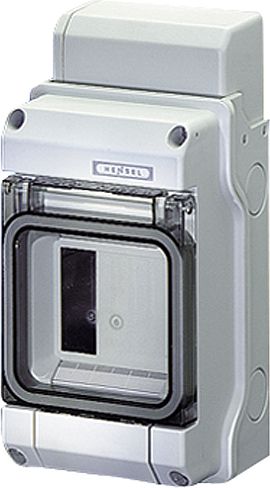

Technical data:rated insulation voltage: Ui = 400 V a.c.heat/power loss capacity: Pde = 13W at 30 K according to EN 60670-24protection class: IImaterial: PS (polystyrene)width: 146 mmheight: 238 mmdep ще→th: 111 mmweight: 0.763 kgOperating and ambient conditions:Application areas: IP 54/65 Design: Usable for indoor and outdoor installation, protected from weather influencesIP 40/41 design: Useful for installation in dry indoor areasHowever, pay attention to the climate of the installedequipment, e.g. high or low ambient temperatures orformation of condensed water - see technical information.Ambient temperatures: Average value over 24 hours + 35 °CMaximum value + 40 °CMinimum value - 5 °C Relative hum…

Technical data:rated insulation voltage: Ui = 400 V a.c.heat/power loss capacity: Pde = 50W at 30 K according to EN 60670-24protection class: IImaterial: PS (polystyrene)width: 403 mmheight: 630 mmdep ще→th: 129 mmweight: 4,594 kgOperating and ambient conditions:Application areas: IP 54/65 Design: Usable for indoor and outdoor installation, protected from weather influencesIP 40/41 design: Useful for installation in dry indoor areasHowever, pay attention to the climate of the installedequipment, e.g. high or low ambient temperatures orformation of condensed water - see technical information.Ambient temperatures: Average value over 24 hours + 35 °CMaximum value + 40 °CMinimum value - 5 °C Relative hum…

Technical data:rated insulation voltage: Ui = 400 V a.c.heat/power loss capacity: Pde = 43W at 30 K according to EN 60670-24permissible heat/power loss capacity: Pzul = 34W at 30 K according to DIN 43 ще→871protection class: IImaterial: PS (polystyrene)width: 295 mmheight: 708 mmdepth: 129 mmweight: 4,026 kgOperating and ambient conditions:Applications: IP 54/65 design: Usable for indoor and outdoor installation, protected against weather influencesIP 40/41 design: Useful for installation in dry indoor areasHowever, pay attention to the climate of the installedequipment, e.g. high or low ambient temperatures orformation of condensed water - see technical information. Ambient temperatures: Average …

Technical data:rated insulation voltage: Ui = 400 V a.c.heat/power loss capacity: Pde = 12W at 30 K according to EN 60670-24protection class: IImaterial: PS (polystyrene)width: 126 mmheight: 228 mmdep ще→th: 111 mmweight: 0.635 kgOperating and ambient conditions:Application areas: IP 54/65 Design: Usable for indoor and outdoor installation, protected from weather influencesIP 40/41 design: Useful for installation in dry indoor areasHowever, pay attention to the climate of the installedequipment, e.g. high or low ambient temperatures orformation of condensed water - see technical information.Ambient temperatures: Average value over 24 hours + 35 °CMaximum value + 40 °CMinimum value - 5 °C Relative hum…
